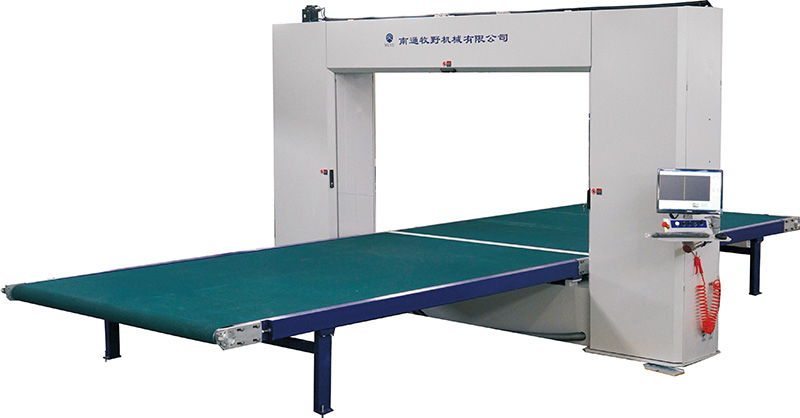

LHV4 CNC Horizontal Wire Foam Cutting Machine

LHV4 CNC Horizontal Wire Foam Cutting Machine
Inquiry

Application
LHV4 CNC Horizontal Wire Foam Cutting Machine could be utilized to cut thermal insulation material, bed mattress or furniture cushions, car upholstery, packaging materials and other industrial materials.

  • LHV4 CNC Horizontal Wire Foam Cutting Machine
  • LHV4 CNC Horizontal Wire Foam Cutting Machine

Materials to be cut

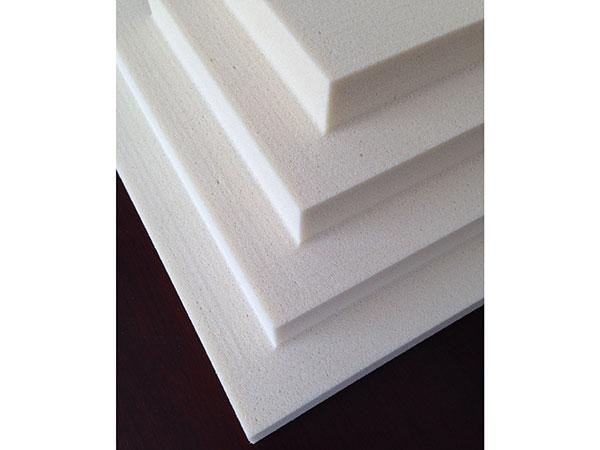

EVA, rigid foam (PU, PIR, EPS, Phenolic resin and etc.), flexible foam (traditional sponge, slow recovery foam and etc.)

Shapes

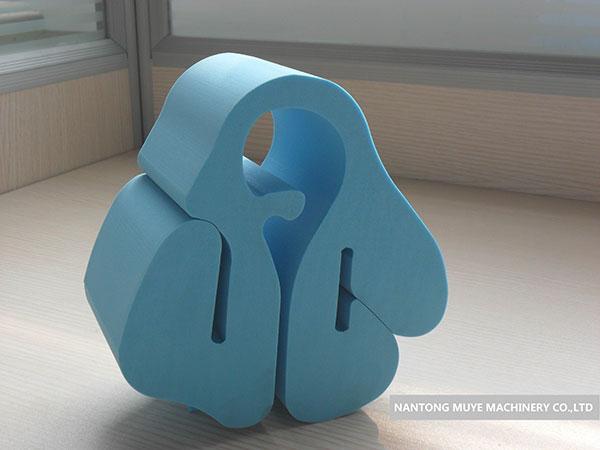

LHV4 CNC Horizontal Wire Foam Cutting Machine could cut foam into block, wavy, curved regular and irregular shapes.

Technical information
Standard
Length of the foam block 3000mm
Height of the foam block 800mm
Width of the foam block 2200mm
Work table Conveyor belt worktable
AC power 380V 3 phase 4 wire
Total power 6KW
Cutting precision ±0.2mm
Cutting tool - Pressure: 6 bar - Continuous blade - Wire cutting speed: 6~50 m / s - Diameter: 1.3mm
Operating option - Modem - Automatic programming software -Computer console
Max. cutting speed Different cutting materials will be cut at different speed. And the max. speed is 10 meters/minute.
Gantry design drawing of LHV4 CNC Horizontal Wire Foam Cutting Machine
